Description

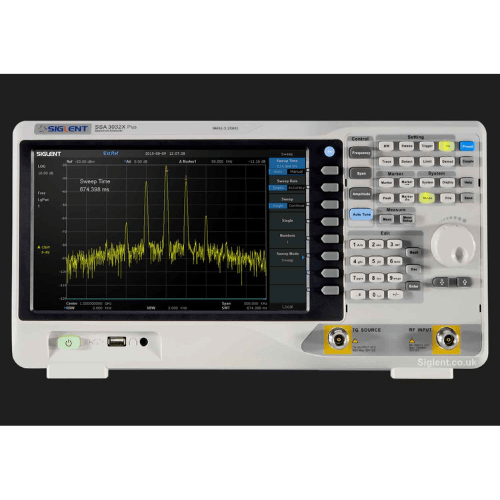

The SSA3075X PLUS has a frequency range of 9kHz to 7.5GHz and a Minimum Resolution Bandwidth of 1Hz. The Siglent SSA3000X Plus series Spectrum Analysers are powerful and flexible tools for RF signal and network analysis. The analyser delivers reliable automatic measurements and multiple modes of operation: Spectrum Analyser the base, optional functions include RF power measurement, vector signal modulation analysis, reflection measurement and EMI test. Applications include broadcast monitoring/evaluation, site surveying, S-parameter measurement, analogue/digital modulation analysis, EMI pre-compliance test, research and development, education, production and maintenance.
- Frequency Range: 9kHz – 7.5GHz
- Resolution Bandwidth: 1Hz – 3MHz
- Displayed Average Noise Level: -165dBm/Hz
- SSB Phase Noise: <-98dBc/Hz
- Total Amplitude Accuracy: < 0.7dB
- Tracking Generator: 100kHz – 7.5GHz
- Touch Screen: Multi-Touch, Mouse and Keyboard supported
- Advanced Measurement: CHP, ACPR, OBW, CNR, Harmonic, TOI, Monitor
- Reflection Measurement: VSWR measurement using Reflection Bridge
- EMI Test: EMI Filter and Quasi-Peak Detector, Log Scale and Limit Line
- Modulation Analysis: AM, FM, ASK, FSK, MSK, PSK, QAM
- Communication Interface: LAN, USB Device, USB Host (USB-GPIB)
- Remote Control Capability: SCPI/Labview/IVI based on USB-TMC/VXI-11/Socket/Telnet
- Remote Controller: NI-MAX, Web Browser, Easy Spectrum Software, File Explorer
