Description

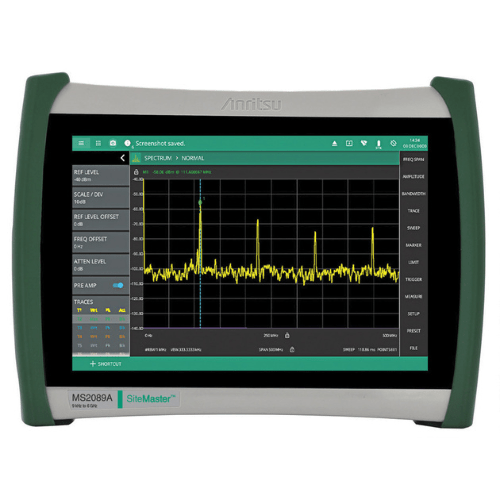

The MS2089A comes in two configurations. The first configuration is a 5 kHz to 4 GHz cable antenna analyzer with a 9 kHz to 4 GHz spectrum analyzer. The second configuration is a 5 kHz to 6 GHz cable antenna analyzer with a 9 kHz to 6 GHz spectrum analyzer. The MS2089A weighs less than 8.5 lbs. and has the same IK08 10-inch touch screen.
- IQ capture/Streaming
- Real-Time Spectrum Analyzer (RTSA)
- LTE FDD/TDD Analyzer
- 5GNR FR1 Analyzer
- Interference Analyzer
Vector Network Analyzer and Vector Voltmeter Highlights
The optional VNA and VVM add detailed analysis capability with performance previously only available in bench top instruments.
- 2-Port 1 Path VNA to 4/6 GHz
- 380 us/point fast sweep speeds
- 100 dB dynamic range
- Default ReadyCal plus support for Mechanical and InstaCal user calibrations
- 16 display types including: Log Mag, VSWR, Phase, Smith Chart, Group Delay and Polar
